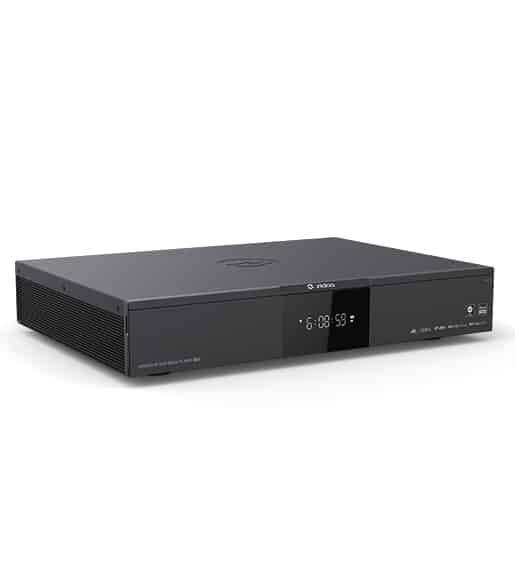

Model UHD5000
Display Screen LED
Chassis Aviation aluminum alloy
OS Android 11
CPU Realtek RTD1619BPD ARM Qual-A55 (quad-core)
GPU ARM Mali-G57
RAM 4GB DDR4
Internal Storage 32GB eMMC
Bluetooth BT 5.2
WiFi 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM
Ethernet RJ-45 Ethernet jack (10/100/1000Mbps) * 1
HDMI Output 2.1 (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4：4 output) + 1.4 (Audio Only passthrough) separate audio and video output
Video Decoding 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby vision
Audio Decoding Support HD audio passthrough and decode 2 channels Built-in XMOS+ESS 9068 DAC,supporting DSD、MQA decoding
USB Audio Input USB audio input supports Windows 10, Windows 11, Mac and Android Up to two channels DSD512, PCM 768KHz@32bit PCM, MQA decoding
Other Audio Port 1*Optical,1*Coaxial,1*RCA L/R,XLR L/R balanced
Analog Audio Characteristics Frequency range: 20Hz-20KHz +/-0.2dB SNR: > 121dBrA THD+N: < 0.00026% Output level: (XLR) 4.8Vrms. (RCA) 2.4Vrms. DNR: > 121dB Crosstalk: > 135dBrA
Power Supply AC 110~120/220~240V 50/60Hz (built-in switching power supply )
USB 1*USB3.0，3*USB2.0
SATA 2*SATA3.0 and 3.5″ HDD bay (HDD is not included)
Other Ports 1*IR input,1*RCA composite video connector,1*RS232
Dimension 312mm*430mm*72mm
Accessories Remote control * 1 Power adapter * 1 SATA cable *1 User manual * 1
