Description
Hardware Spec:

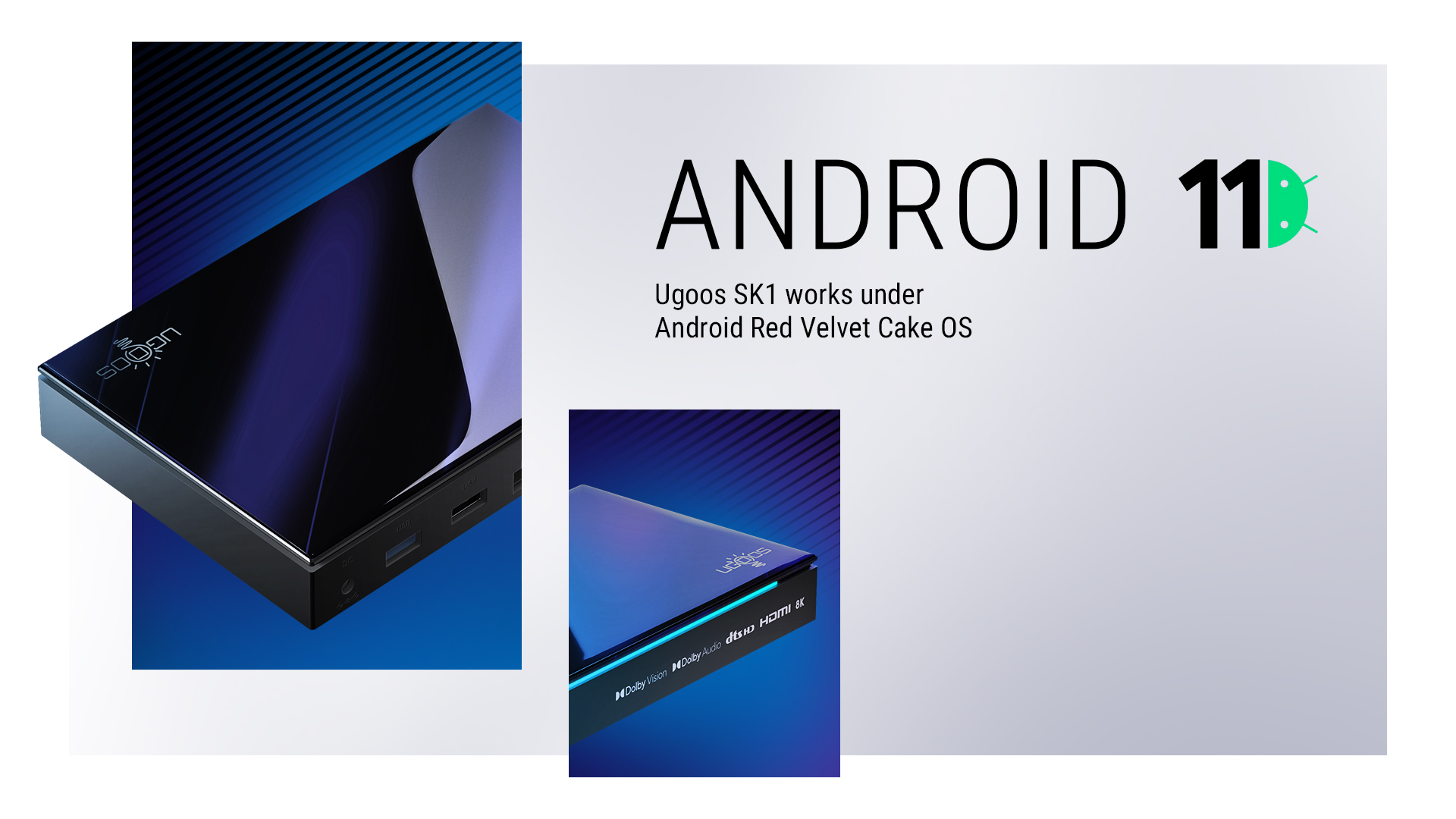

| Operation System | Android 11.0 |
| Language | English, Chinese …Multi-Language support |
| CPU | Amlogic S928X-K with 12nm 2.0G HZ，A big core ARM Cortex-A76 and Quad core ARM Cortex-A55 CPU |
| GPU | Mali G57 MC2 |
| RAM | LPDDR4 8GB |

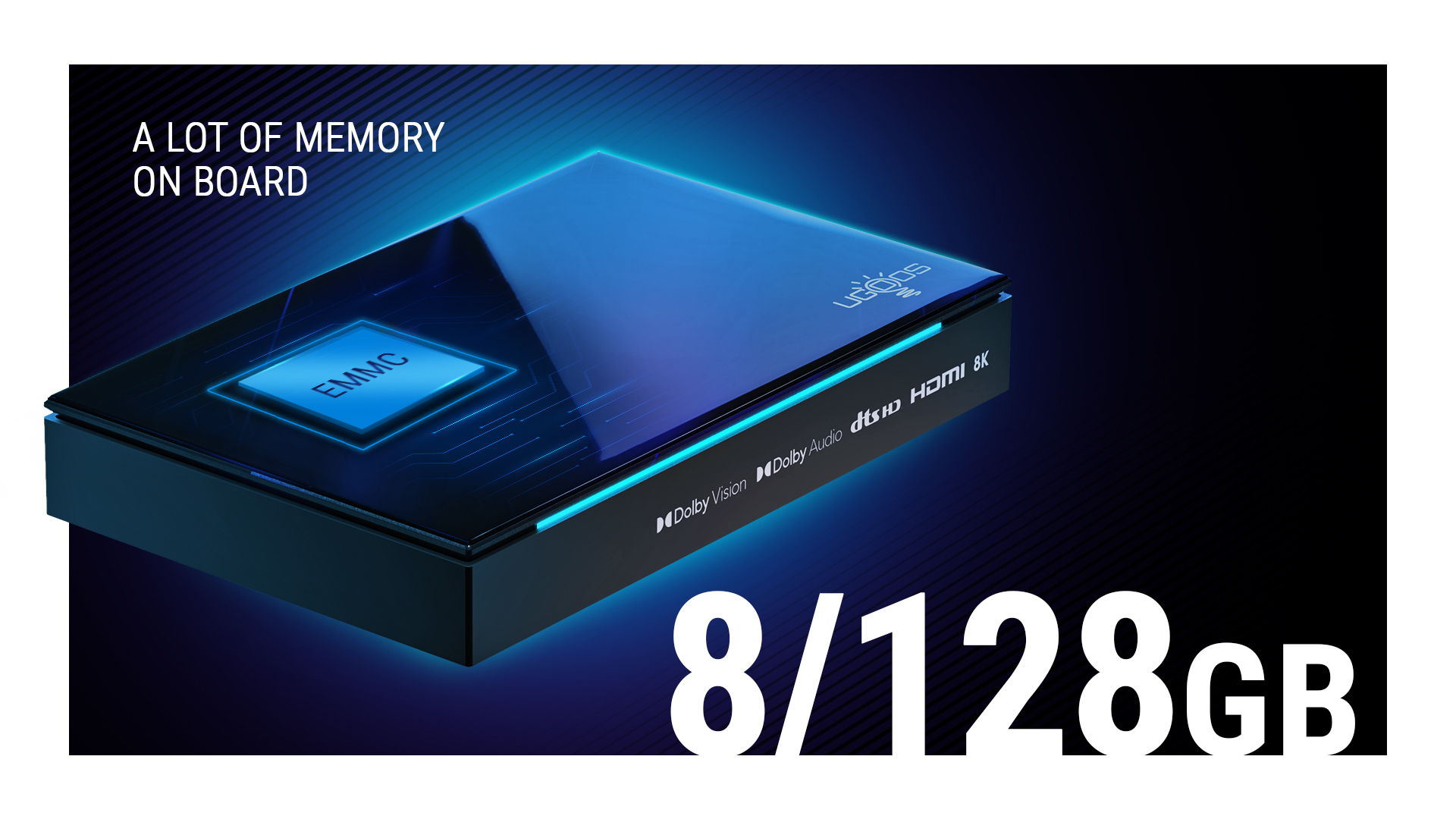

| Storage Capacity (Flash) | 128GB （EMMC） |
| WIFI | Realtek 8852be(wifi6) 2.4G+5G complies with IEEE 802.11 a/b/g/n/ac/ax 2×2 Access Points with MIMO standard
up to 1200Mbps with dual stream in 802.11ax |
| Bluetooth | Bluetooth 5.2 with LE technology |
| Power Supply | DC Power adapter 12V/2.0A |
| HDR | HDR10, HDR10+, HLG |
| Licenses | Widewine L1 Support, Dolby Audio, Dolby Vision, DTS Audio |

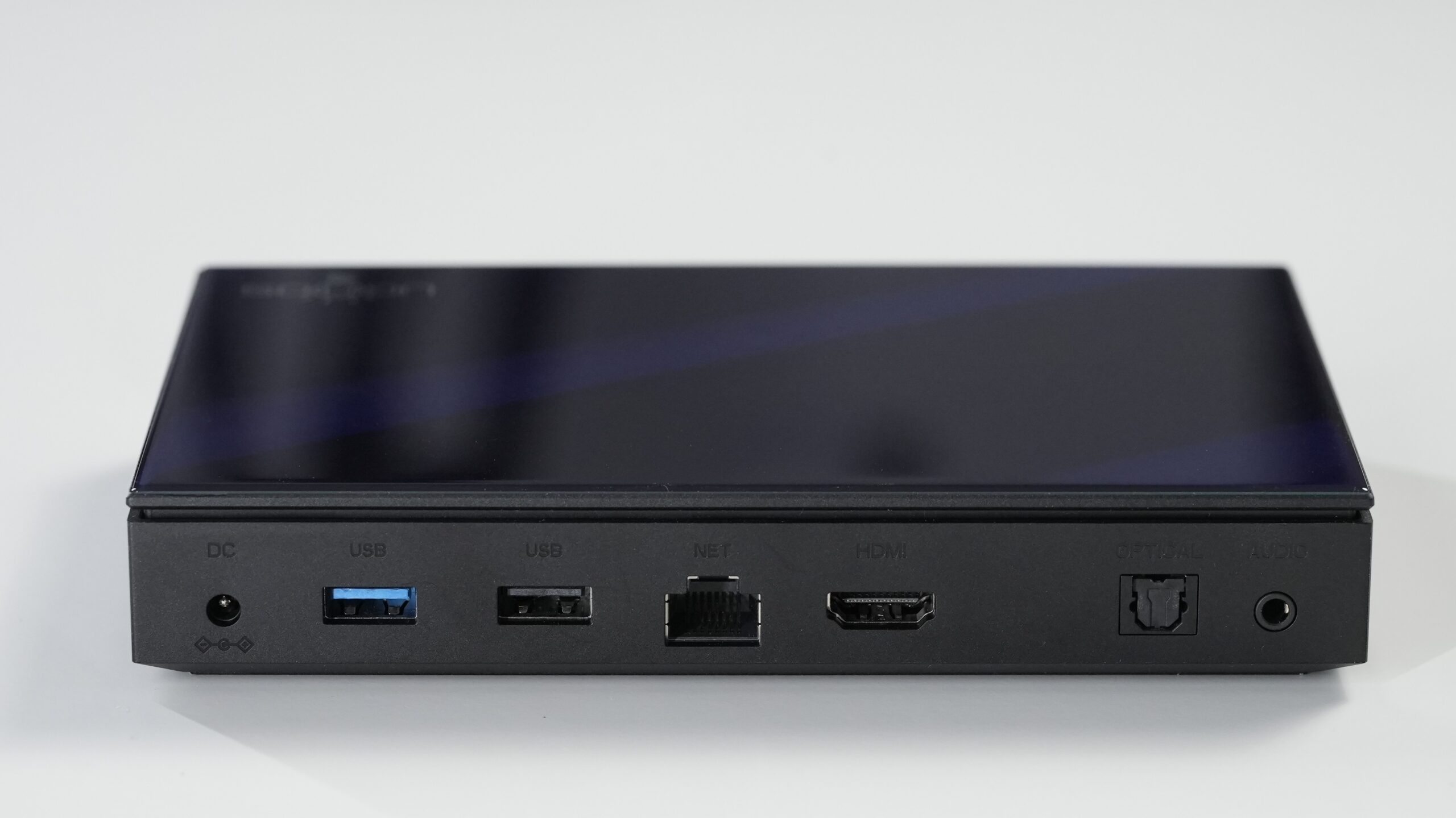

Interfaces:
| HDMI Output | HDMI 2.1a Type-A 8Kx4K max resolution |
| USB Port | 1 USB 3.0 OTG & 1USB 2.0 |
| Optical Output | 1*SPDIF |
| Audio Output | 3.5mm R/L Audio output |
| Led Work Light | Support |
| Network | 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface) |
Media Parameters:
| Audio Container | Supports MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio Optional, DTS Optional and programmable with 7.1/5.1 down-mixing |
| Audio Out | Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Video CODEC | − AV1 [email protected] up to 8Kx4K@60fps − VP9 [email protected] up to 8Kx4K@60fps − H.265 HEVC [email protected] up to 8Kx4K@60fps − AVS3 Phase 1 up to 8Kx4K@60fps − AVS2-P2 Profile up to 8Kx4K@60fps − H.264 AVC [email protected] up to 4Kx2K@30fps − MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) − WMV/VC-1 SP/MP/AP up to 1080P@60fps − AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps − MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) − MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) − Multiple language and multiple format sub-title video support − MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) − Supports JPEG thumbnail, scaling, rotation and transition effects |
| Software Extension | Support Google Play & APK install |
| DLNA, Miracast Protocol | Support DLNA, Miracast Protocol |
| Remote Control | UR-02 remote with Voice+Gyro |
Other Parameters:
| Humidity Environment | 5%-90%(No condensation） |
| Certificate | CE, FCC |
Package:
| Dimensions | 16.9X10.8×3 CM |
| Net Weight | 1030g |
| Gift Box Size | 20.5×16.7×7.9 CM |
