Hardware
Media processor: Amlogic S928X-K/J with Dolby Vision VS10 engine
Operating memory: 8 GB
Flash memory: 64 GB
Ethernet: 10/100/1000 Mbit/s
Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R
Bluetooth: 5.2
USB ports: 3x USB 3.0 host + 1x USB 2.0 host

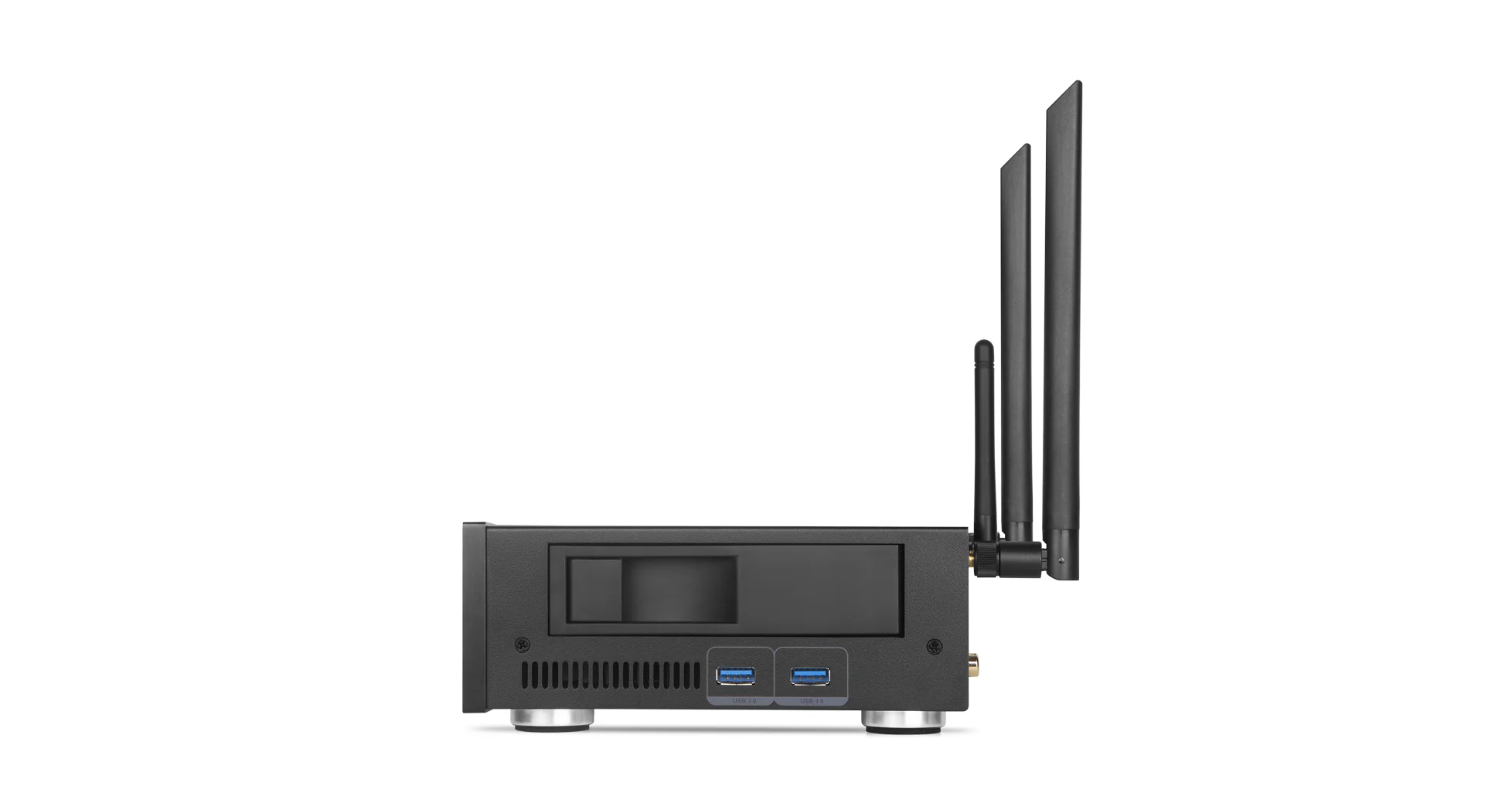

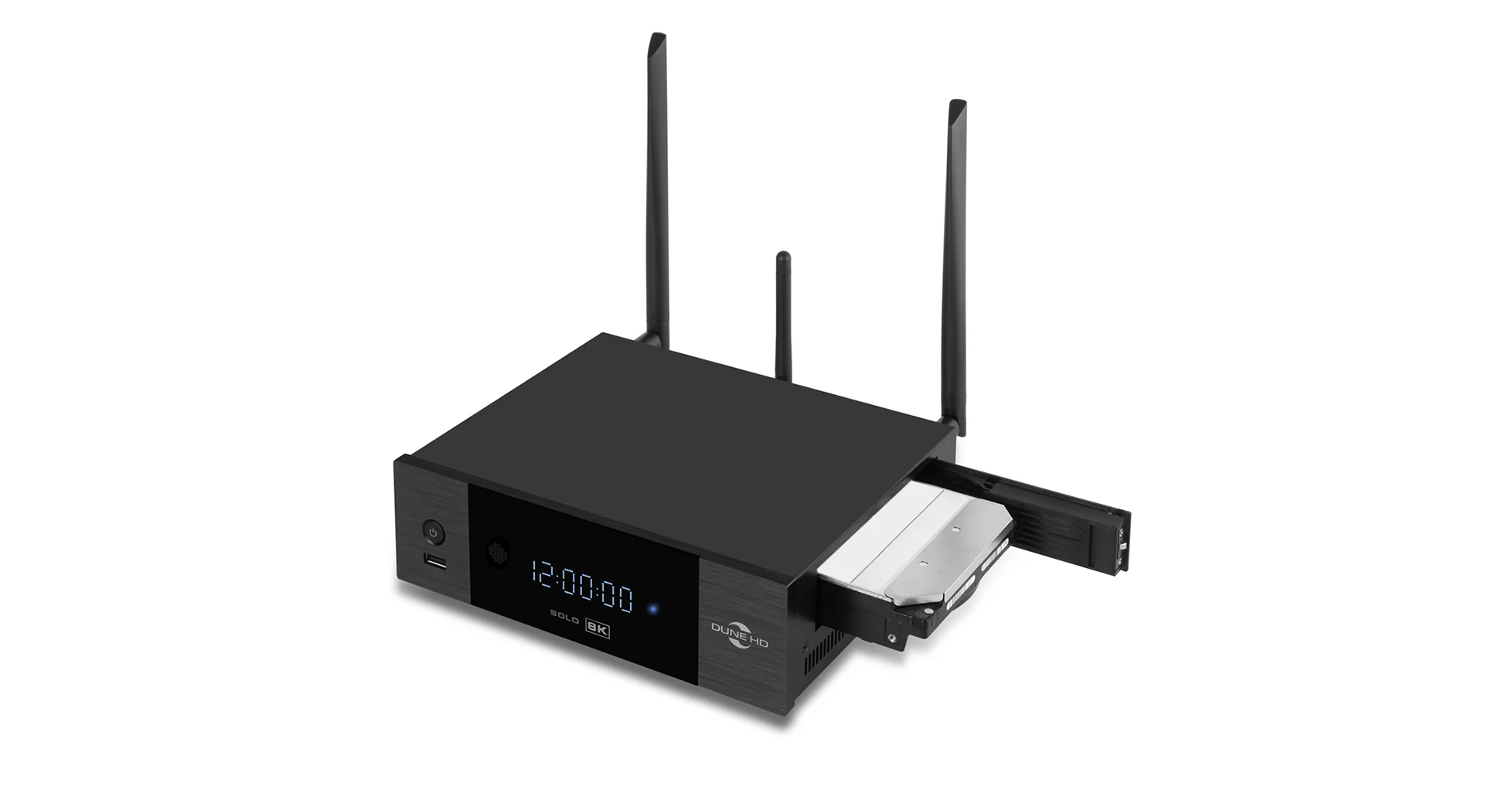

Built-in HDD rack: 3.5″ SATA HDD, up to 20 TB and more, hot swap
HDMI output: HDMI 2.1a up to 8Kp60 HDR / 4Kp60 Dolby Vision, experimental support for 120 Hz (up to 4Kp120)

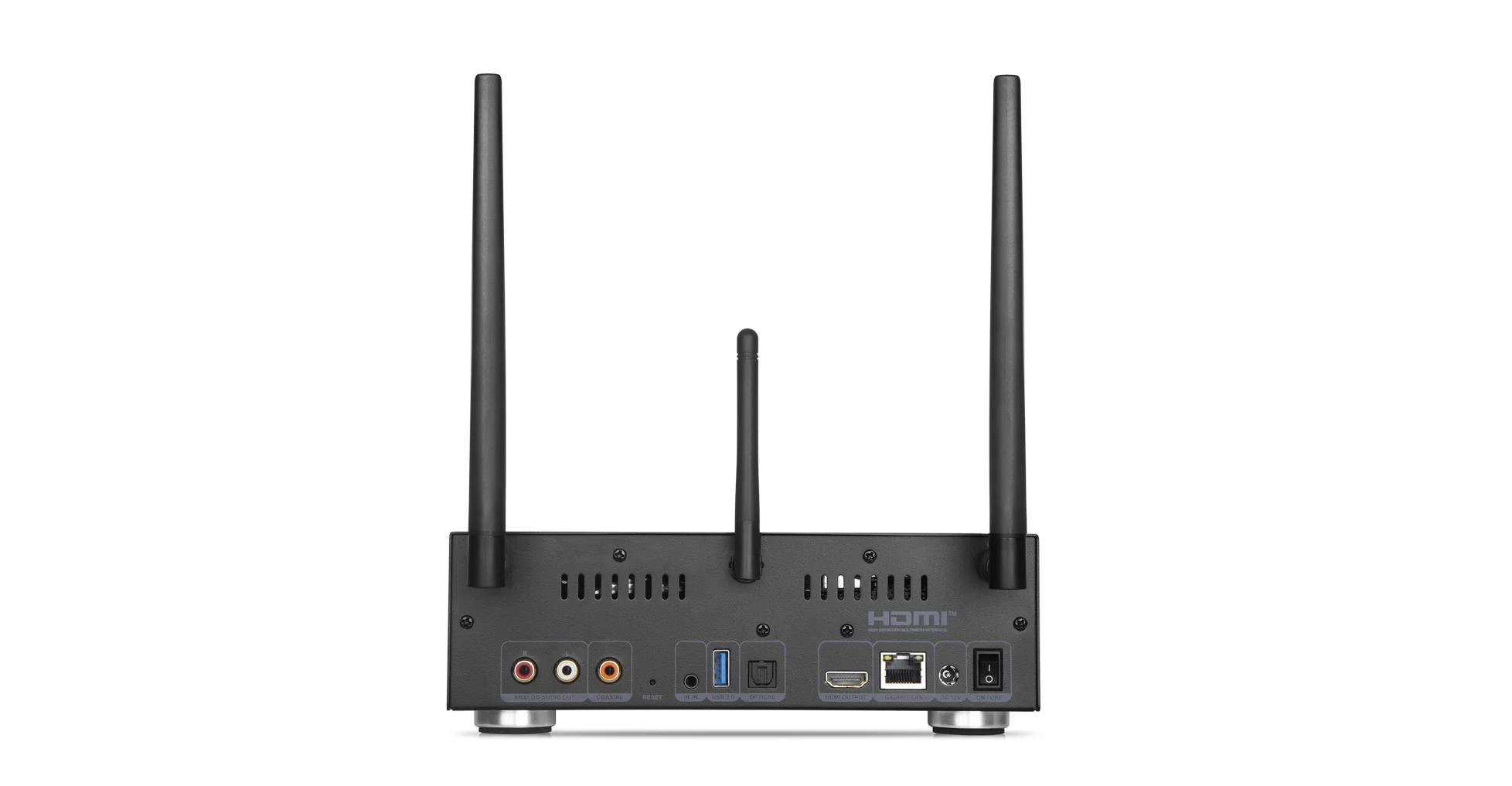

Analog audio output: 2xRCA (stereo audio)
S/PDIF output: Optical S/PDIF, Coaxial S/PDIF

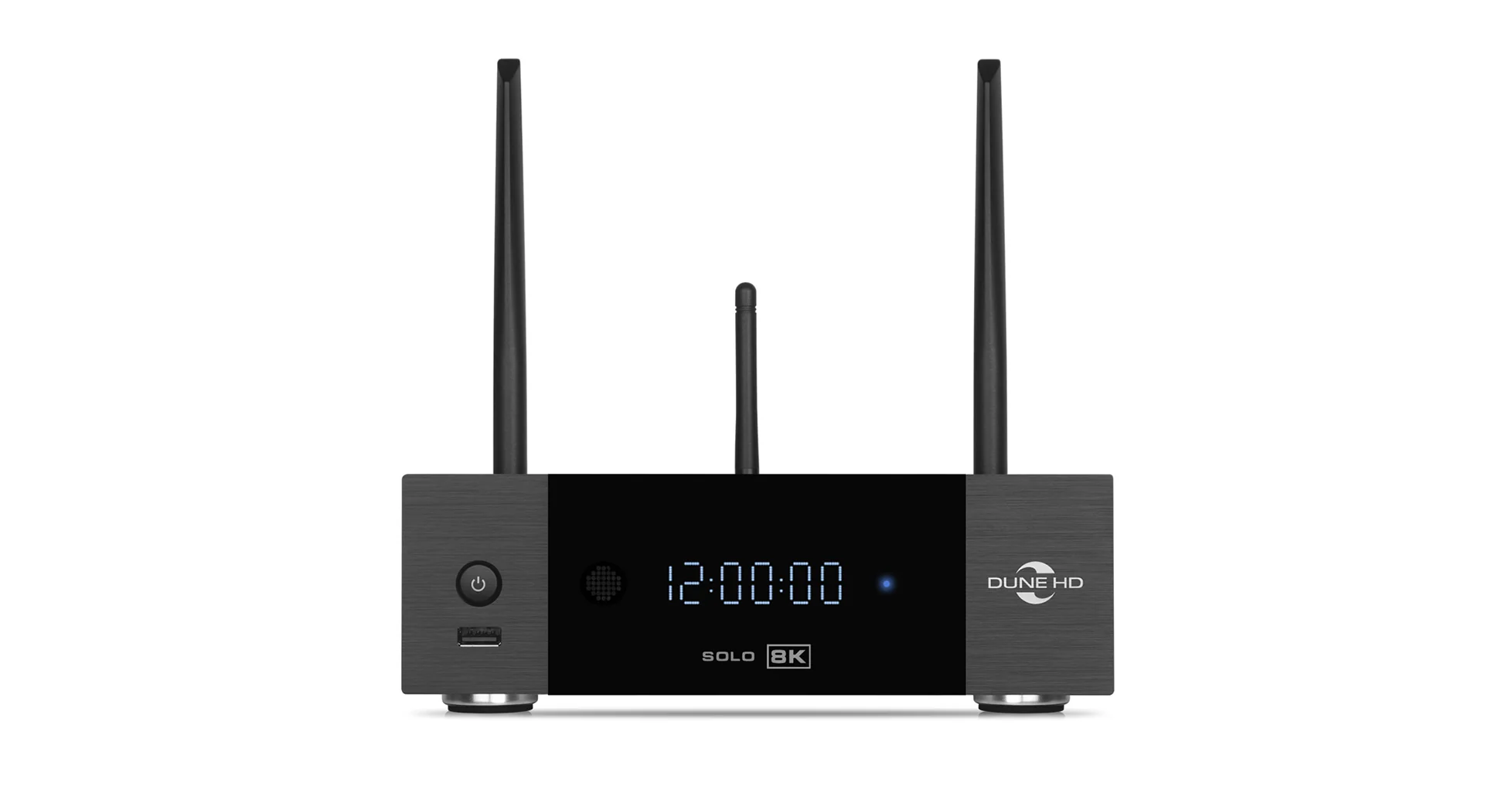

Front panel display: Multi-segment LED display HH:MM:SS
Front panel power button: Yes
IR receiver: Built-in IR receiver, supports Dune HD IR codes and Google IR codes
IR input port: For connecting external IR receiver (not included); 3.5mm minijack, T-R-S: 5V-IR-GND, L=14.5mm (→ details)
Antennas: 2x external Wi-Fi antennas (detachable) + external BT antennas (non-detachable, because it is needed for Bluetooth remote)

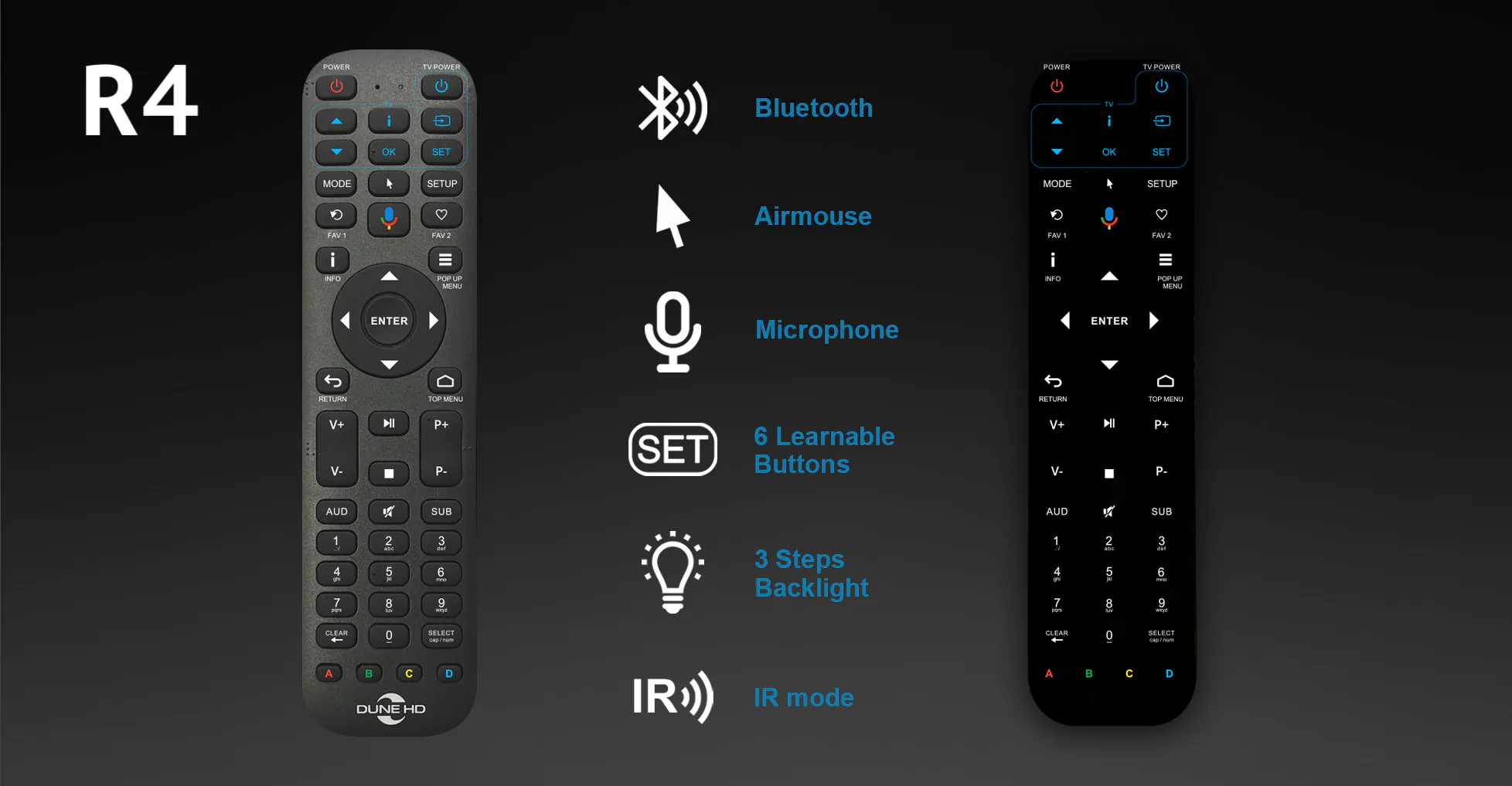

Remote: Bluetooth remote with microphone (voice search), Air Mouse, IR learning, backlight, IR mode (These specifications are for the latest batches with R4 remote; the first batches included an older R3 remote without backlight and IR mode functions.)
Case: Metal
Cooling: passive (entire case as a super-efficient heatsink) and active (quiet fan for extra HDD cooling)
Dimensions (W x H x D): 215mm x 75mm x 184mm
Power input: 12V DC IN (3A)
Power supply: External, DC 12V (3A), AC 100-240V
Video
8K video decoding: Yes, up to 8Kp60 HDR; 8K content can be downscaled to 4K, 1080p or lower output resolution
8K video output: Yes, up to 8Kp60 HDR; any content can be upscaled to 8K output resolution
Video decoding: AV1, VP9 profile 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1
HDR formats: Dolby Vision, HDR10+, HDR10, HLG
Dolby Vision VS10 engine: Yes
Dolby Vision playback: Profiles 5, 7 (MEL and FEL), 8; various containers (ISO, movie folder structure, MKV, MP4, M2TS); DTDL (double-track double-layer), STDL (single-track double-layer), STSL (single-track single-layer). Double-track/double-layer video (profile 7 MEL, profile 7 FEL) is played with the use of data from both tracks/layers: video data from the first track/layer (with 10-bit color depth – the maximum color depth supported by OLED-panels in OLED TVs), extended Dolby Vision information (RPU metadata) from the second track/layer
Dolby Vision output: LLDV (Low Latency Dolby Vision / Player-led Dolby Vision), STD DV (Standard Dolby Vision / TV-led Dolby Vision)
Manual preference for LLDV or STD DV: Yes
HDR mode (SDR/HDR/DV) switching: manual and automatic (according to played content)
Framerates: all standard framerates including 23.976, 24.0, 25.0, 29.97, 30.0, 59.94, 60.0; experimental support for 120 Hz output
Framerate and resolution switching: manual and automatic (according to played content)
Video upscaling and downscaling: Yes
3D video support: Side-by-Side, Top-and-Bottom (TV requires manual switching into 3D mode)
Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, movie folder structures
BD playback: Lite (direct video playback without menu), Full Menu
DVD-Video playback: Lite (direct video playback without menu)
Audio
Bitstream passthrough: bitstream passthrough of all Dolby/DTS formats (up to Dolby TrueHD Atmos and DTS X)
Decoding of Dolby/DTS formats: multichannel decoding (up to 7.1 channels) of all Dolby/DTS formats (up to Dolby TrueHD Atmos and DTS X)
Audio decoding: MPEG-1/2 layer I/II/III, AAC, LPCM, FLAC, multichannel FLAC, Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD DSD (stereo and multichannel), multichannel PCM (up to 7.1), all Dolby/DTS formats (up to Dolby TrueHD Atmos and DTS X)
Audio file formats: MP3, MPA, M4A, AAC, WAV, FLAC, Ogg/Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD ISO (stereo and multichannel), SACD DSF (stereo and multichannel), SACD DFF (stereo and multichannel), AC3, DTS, DTS-WAV
PCM audio output: original sample rate (44.1 to 192 kHz)
Other Features
Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV)
Online subtitles: Automatically download subtitles from Internet
Picture file formats: JPEG, PNG, BMP
Photo viewer functions: Slideshow, transition effects, picture rotation, zoom, view playlist, repeat, shuffle
Playlist file formats: M3U, PLS, CUE
Playlist functions: Build playlist from selected folders and files, build playlist from selected playlist files, view playlist file, view current playlist, quickly jump to next/previous or selected playlist item, repeat, shuffle, playlist of photo files, playlist of audio files, playlist of video files, mixed playlist of audio and video files
SMB client: Browse SMB servers/shares, manually connect to SMB share, directly access (read-write) and play files (SMB v1/2/3)
NFS client: Browse NFS servers/shares, manually connect to NFS share, directly access (read-write) and play files
SMB server: Share connected storage devices (internal HDD, USB HDD) and internal flash memory to local network via SMB protocol (SMB v1/2/3)
iOS and Android mobile apps: Control the media player via the powerful Dune Control mobile application
IP control: Use the built-in IP Control interface to integrate the media player into Smart Home and Home Automation systems (such as Control4 and Crestron)
OS and Apps
OS: Linux-based Dune HD OS + Android 11
OS kernel: 64-bit
Android apps: 32-bit
Support for HDDs larger than 16 TB: Yes
Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write)
Widevine DRM: Widevine L1
Google Android TV certification: No
Netflix certification: No
Compatibility with Android apps and streaming services: Varies across particular apps and services, no guaranteed compatibility (no official Android TV certification, no official certifications by particular streaming services); the primary function of this media player is Hi-End media playback from HDD or NAS, support for Android apps and streaming services is additional non-primary functionality without guaranteed compatibility
Functions requiring Internet connection: Some functions require Internet connection to verify Dune HD license. 1. Internet connection is required to play video files in the most advanced Dolby Vision format (DV Profile 7); w/o Internet, such files still can be played, but in HDR format (like in most media players of other brands). 2. Internet connection is required to play BD images with Full Menu; w/o Internet, such files still can be played, but with Lite Menu (like in most media players of other brands). In the future, the set of functions which require Internet connection may change.
Package Contents
Media player x1
Wi-Fi antenna x2
Bluetooth remote x1
Batteries AAA x2
Power supply 12V 3A x1
HDMI cable 8K Ultra High Speed x1
Quick installation guide x1
